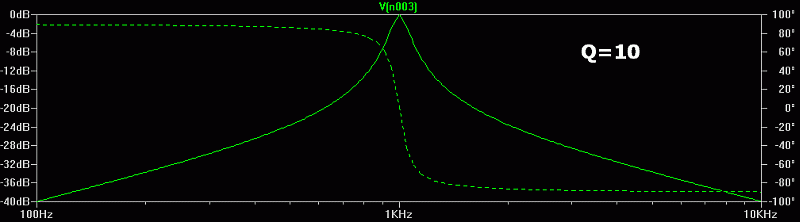

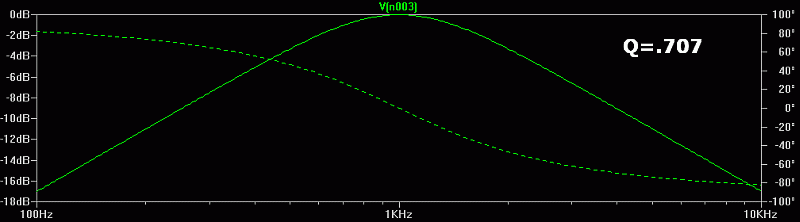

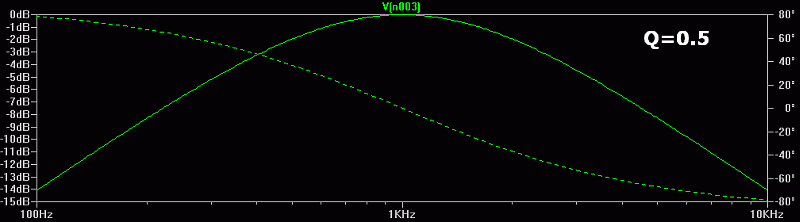

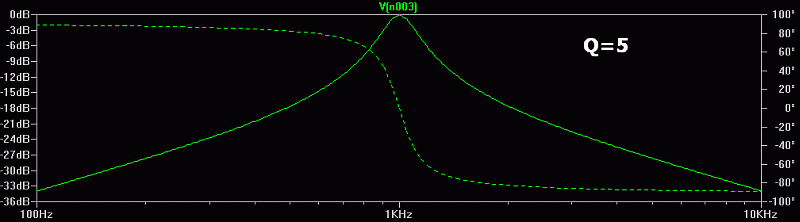

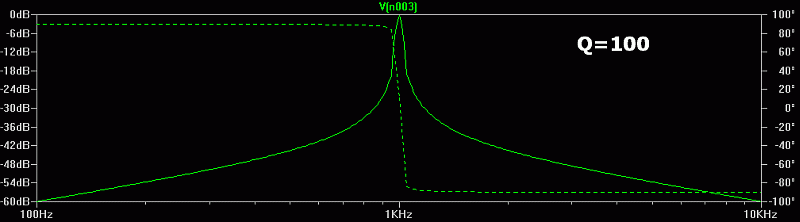

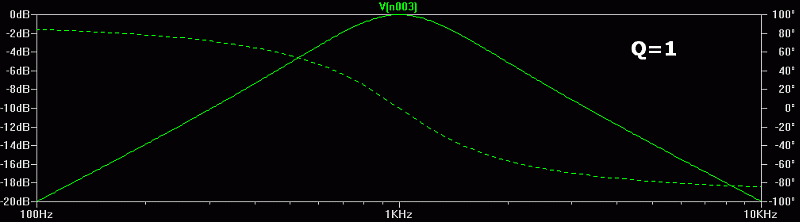

Series-Resonant LC Filter Plots

showing various Q values

Plots made with LTspice - SwitcherCad III

  • Center frequency 1 kHz - note logarithmic frequency scale.
  • Solid plot line is frequency response (left vertical scale).
  • Dashed line is phase shift (right vertical scale).







back

series-resonant LC filter values calculator
